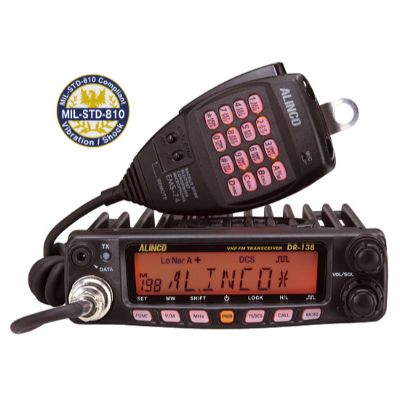

Alinco DR-138 VHF DR 438 UHF
Mobile Professional Transceiver
₹26,500.00
Description
- Output power selectable 60W/25W/10W
- PC programmable 200ch
- Alphanumeric name tags
- Voice Compander (Reduce Noise & enhance audio clarity)
- Wide variety of selective calling features built in;The 2 Tone, 5 Tone, 50 CTCSS, 114 DCS, 4 Tone burst tones and DTMF/ANI decode
- Radio stun/kill/revive functions to protect your communication security
- Large, bright LCD and easy to operate backlit keys
- Multi function, backlit microphone enables direct frequency entry & more from keypads
- Various scan modes, Key lock, Wide/Narrow operations and more at NO extra costs!
- Inversion Scramble (DR 138S only)
| Brand | Alinco |
| Product Code | DR-138 |
| Number of channel | 200 channel |
| Weight | 1.2 kg |
| Dimensions | 145(W) x 47(H) x 190(L)mm |
| Range | 15-20 kilometer |
| Frequency Range | 136.000-173.9975MHz |
| Channel Spacing | 25KHz (Wide mode) 20K Hz (Middle mode) 12.5KHz (Narrow mode) |
| Operating voltage | 13.8 V +/-15% |
| Frequency Stability | +/-2.5 ppm |
| Operating Temperature | -20 deg C - +60 deg C |
| Minimum Order Quantity | 01 Unit |
VHF : 134 to 173 Mgz, UHF : 410 to 470 Mgz
| Receiver | ||
| Wide band | Narrow band | |
|---|---|---|
| Sensitivity(12dB SINAD) | ≤0.25μV | ≤0.35μV |
| Adjacent Channel Selectivity | ≥70dB | ≥60dB |
| lntermodulauon | ≥65dB | ≥60dB |
| Spurious Rejection | ≥70dB | ≥70dB |
| Audio Response | +1-3dB (0.3-3KHz) | +1-3dB (0.3-2.55KHz) |
| Hum & Noise | ≥45dB | ≥40dB |
| Audio Distortion | ≤5% | |
| Audio Power Output | 2W (10%) | |
| Transmitter | ||
| Wide band | Narrow band | |
| Modulation | 16K F3E | 11K F3E |
| Adjacent Channel Power | ≥70dB | ≥60dB |
| Hum & Noise | ≥40dB | ≥36dB |
| Spurious Emission | ≥60dB | ≥60dB |
| Audio Response | +1-3dB (0.3-3KHz) | +1-3dB (0.3-2.55KHz) |
| Audio Distortion | ≤5% | |
