UV-5R DUAL BAND

UV-5R DUAL BAND
UV-5R DUAL BAND - Image 2
Category:

UV-5R DUAL BAND

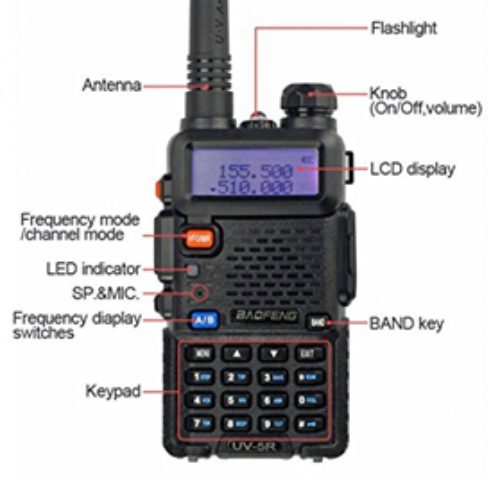

BAOFENG UV-5R DUAL BAND (VHF/UHF) ANALOG PORTABLE TWO-WAY RADIO

LONG RANGE

Price : INR 4,000 to 6200 Per Piece, Warranty – Three months

Range : 1.8 to 2.5 Kms in City, Upto 8 Kms in Semi Urban Area

₹3,500.00

Description

  • BaoFeng UV-5R

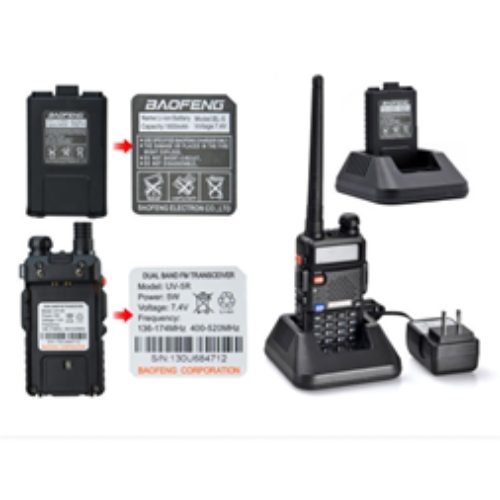

  • 1500mAh Battery
  • Antenna
  • Power Adapter
  • Belt Clip
  • Hand Strap
  • Battery Charger
  • User Manual
  • 25KHz/12.5KHz Switchable (Wide/Narrow Band)
  • FM Radio (65.0MHz-108.0MHz)
  • Large Inverted LCD Display
  • LED Flashlight
  • High /Low RF Power Switchable
  • VOX
  • 50 CTCSS/ 104 DCS Tones
  • Tone searching/scanning
  • Dual standby
  • PC programmable
  • Transmitter time-out timer(TOT)
  • Busy channel lock-out(BCLO)

Frequency range:
[TX] 136 – 174MHz, 400 – 520MHz
[RX] 136 – 174MHz, 400 – 520MHz, 68-108MHz (FM Broadcast)
Channel Capacity:
128 Channels
Channel Spacing
25KHz (wide band)12.5KHz (narrow band)
Sensitivity
≤0.25μV (wide band) ≤0.35μV (narrow band)
Operation Voltage
7.4V DC ±20%
Battery:
1500mAh
Frequency step:
2.5, 5, 6.25, 10, 12.5, 20, 25, 30 and 50KHz
Antenna:
Antenna Connector: SMA-Female / Antenna Impedance: 50Ω
Accessory Connector:
Kenwood 2 Pin Standard
Stability:
±2.5ppm
Output power:
5W / 1W
Audio Power Output
700mW/10%
