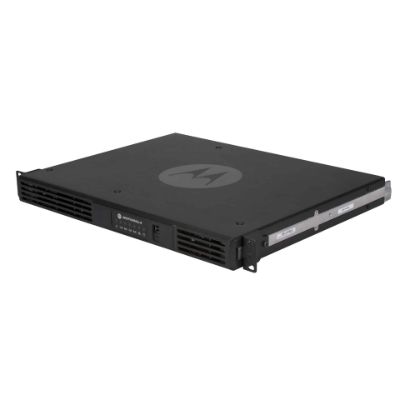

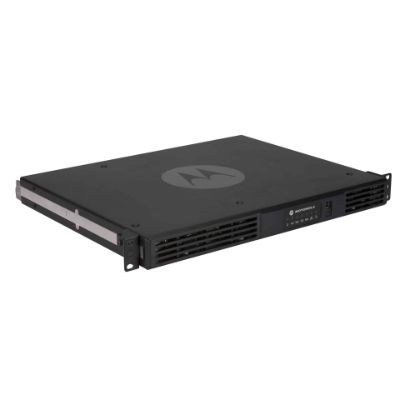

Motorola SLR 5300 Repeater
Price on Request
For your business to be successful, you need dependable voice and data communications that reach every corner of your operations. The MOTOTRBO SLR 5300 repeater delivers high performance, high reliability two-way radio service with all the features you need to connect your workplace.
With its sleek form factor and low power consumption, it’s engineered for low cost of ownership. And with a huge leap forward in technology, it represents the next generation in repeaters.
Description
| VHF | UHF | 300 MHz | |
|---|---|---|---|
| Frequency Range | 136-174 MHz | 400-470 MHz | 350-400 MHz |
| Channel Capacity | 64 | ||
| RF Output Power | 1-50 W | ||
| Dimensions (H x W x D) | 1.75 x 19 x 14.6 in (44 x 483 x 370 mm) | ||
| Weight | 19 lbs (8.6 kg) | ||
| Input Voltage (AC) | 100-240 Vac, 47-63 Hz | ||
| Current (standby), 110 / 240 V | 0.18 / 0.25 A | ||
| Current (transmitting), 110 / 240 V | 1.5 / 0.9 A | ||
| Input Voltage (DC) | 11.0-14.4 Vdc | ||
| Current (standby) | 0.7 A | ||
| Current (transmitting) | 9.5 A | ||
| Operating Temperature Range | -22 to +140 °F (-30 to +60 °C) | ||
| Humidity | RH of 95%, non-condensing at 50 °C (122 °F) | ||
| Max Duty Cycle | 100% | ||
| FCC Description | ABZ99FT3094 | ABZ99FT4096 | |
| IC Description | 109AB-99FT3094 | 109AB-99FT4096 | |
| Digital Vocoder Type | AMBE+2™ | ||
| Battery Charger Capacity | 12 V, 3 A | ||
| Connectivity | Tx (N female), Rx (BNC female), USB A receptacle, 2x Ethernet | ||
| Supported System Types | Digital Conventional, IP Site Connect, Capacity Plus, Linked Capacity Plus, Connect Plus Analog Conventional, MPT 1327 |
||
