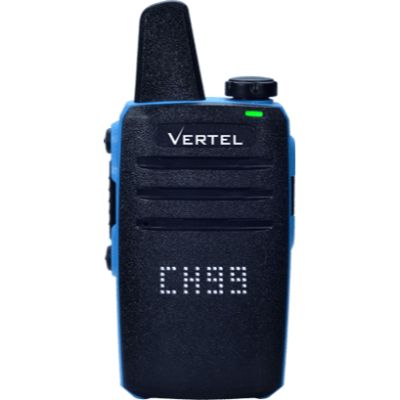

Team Talky New Upgraded Model

Team Talky New Upgraded Model
Categories: ,

Team Talky New Upgraded Model

  • LED Display
  • 99 Channels
  • Power Output 0.5W
  • PTT Prompt Tone
  • Menu Display Mode
  • Low Battery Strength Display
  • Channel Number/Name Display

₹4,750.00

Description

  • VOX
  • 107 DCS
  • 53 CTCSS
  • Priority Scan
  • Channel Scan
  • Hi/Low Power
  • Time-out Timer
  • Voice Annunciation
  • Multiple Call Tones
  • Low Battery Alert
  • PC Programmable
  • Busy Channel Lockout
  • Selectable Squelch Level
  • CO/TO/SE Scan Switchable
Name PMR FM TRANSCEIVER
Model Team Talky
Frequency Band UHF
Channel capacity 99
Frequency Range 446 – 446.2 MHz
RF output 0.5 W
Dimension 92 X 56 X 28mm
Rated voltage DC: 3.7 V
Operating Temperature -20°C ~ +60°C
Frequency range 446 – 446.2 MHz
Channel spacing(KHz) 12.5 KHz
Sensitivity 0.20uV
Squelch sensitivity 0.18uV
Selectivity ≥ 60dB@12.5KHz / ≥ 65dB@12KHz
Intermodulation ≥ 65dB
Spurious rejection ≥ 60dB
Image rejection ≥ 65dB
FM noise ≤ – 40dB@12.5KHz / ≤ 45dB@25KHz
RX bandwidth ≤ ± 7KHz@12.5KHz / ≤ ± 16KHz@25KHz
Audio response + 1 – 3 dB
Audio power ≥ 1W
Audio distortion ≤ 3%
Frequency Band UHF
Channel Spacing 12.5 KHz
Frequency Stability ± 1.5 PPM
Frequency Range 446 – 446.2 MHz
Power output 0.5 W
Modulation Limit ≤ ± 2.5KHz@12.5KHz / ≤ ± 5.0KHz@25KHz
FM Hum and noise – 40dB@12.5KHz / – 45dB@25KHz
Audio distortion < 3%
Audio response 12.5 KHz

Disclosure : Apart from ETA approved License free Walkie Talkies which are prescribed in details by Gazette Notification number REGD. NO. D. L-33004/99 Dated 18 October 2018, to buy any other walkie talkie please apply and get a valid Wireless Operating License (WOL) which is issued by Department of Telecom, Government of India under Indian Telegraph Act 1885.
